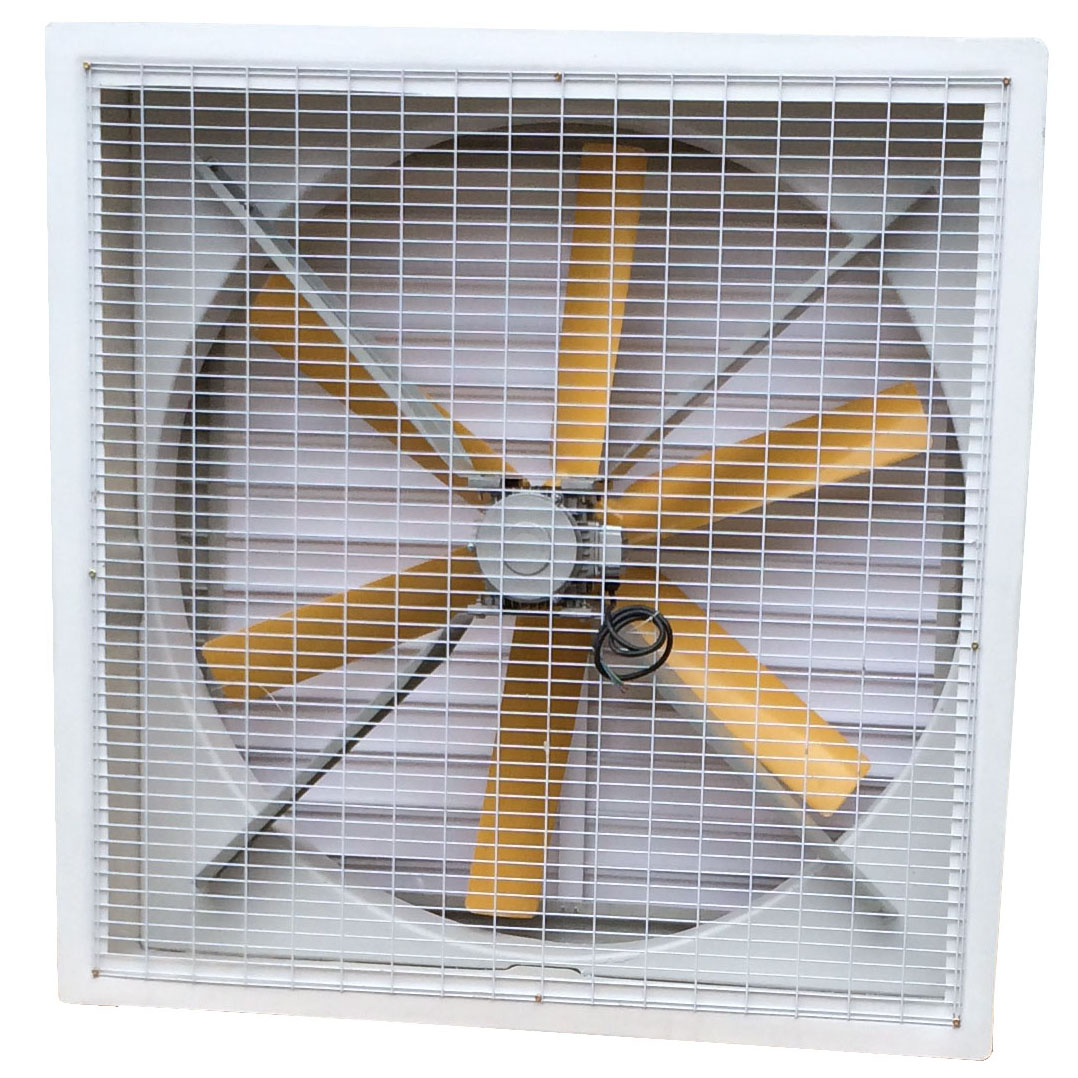

agriculture good price chicken shed high flow rate wall mount axial flow ventilation fan
1. 33years factory history
2. Guaranteed quality with CE
3. Fine performance
4. Larger wind output
5. Low power & low price
6. 10 years housing lifetime
Main Parameter of Axial Flow Ventilation Fan
|Diameter of Fan||420mm||540mm||620mm|
|Air Volume||5000 m³/h||12000 m³/h||21500 m³/h|
|Motor||0.37KW 4pole||0.37KW 4pole||0.37KW 4pole|
|Product w/o Flange Size||510*510*270mm||680*680*320mm||800*800*320mm|
|Product w/ Flange Size||550*550*270mm||760*760*320mm||860*860*320mm|
|Diameter of Fan||850mm||1050mm||1250mm|
|Air Volume||25500 m³/h||33500 m³/h||42000 m³/h|
|Motor||0.55KW 10pole||0.75KW 12pole||1.1KW 12pole|
|Product w/o Flange Size||1000*1000*320mm||1220*1220*320mm||1380*1380*320mm|
|Product w/ Flange Size||1060*1060*320mm||1260*1260*320mm||1460*1460*320mm|
Advantage of Axial Flow Ventilation Fan
1.Huge airflow, low noise, high efficiency.Good looking, surface smoothness & gloss without rough edges.
2.Be introduced the advanced technology from Europe, suitable for various environment.
3.Fan Housing: strength fiberglass.
4.Shutters: good plastic
5.Fan Propeller: 6pcs blades of propeller made by mould pressing.
6.Motor: die casting aluminum body & Die casting iron body for options, good for heat transfer and l Low noise. With over-load protection inside.
7.Bearing: imported auto bearing to ensure stable operation for the fan propeller and low noise.
8.Cable outlet: cable outlet is on the back of the fan, it makes the fan with more convenience for installation.
Main Parts of Axial Flow Ventilation Fan
Exhaust Fan Housing
corrosion resistant fiberglass housing impact resistant with U.V. protection for better durability, and life
extra liner FRP resin inside for easy cleaning, minimal dirt, disease build-up and maximum air flow flush, eliminates
any protrusions or obstructions in the inside area, self draining sloped housing
Exhaust Fan Motor
motor is 0.75KW
standard motors are totally enclosed, high efficiency
all motors are designed and rated for years of trouble free operation
each motor is individually tested for 100% quality control
heavy duty casting pulley and hub
Exhaust Fan Propeller
Exhaut Fan Motor Bracket
stamped 3mm iron plate bracket, all corners are polished
Exhust Fan Shutter
shutter with PVC extrusion frame
all corner are weld and have extra stainless steel corner
PVC louver with T bar
wire by pass
easy clip to remove shutter
guard; powder coat and cold zinc galvanise for better protection
Application of Axial Flow Ventilation Fan
This fiberglass exhaust fan are widely used in agriculture, industry and other busy or closed places for cooling, such as greenhouse (flower, vegetable and plant), poultry house(animal husbandry, livestock breeding, cow/chicken/sheep house),factory workshop(textile, chemical, medicine, tea, vegetable storage)restaurant and supermarket
