USA Mexico 1830 ~ 201036 M3/H industrial air extractor

Detail

USA Mexico 1830 ~ 201036 M3/H industrial air extractor

Specification

Bidirectional ventilation

Adjustable blade angle

Large air volume

High air pressure

Low noise

Low power consumption

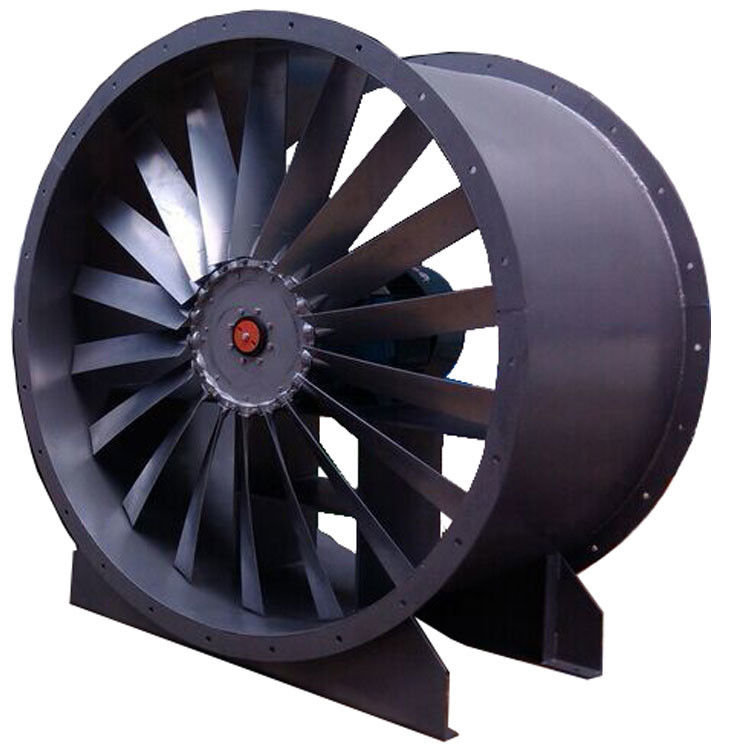

FW Industrial Air Extractor

Low noise axial flow fan is a new generation of low noise one, it is used the optimization design of aerodynamic principles and advanced processing technology. The whole machine is reasonable in structure, durable, safe and practical. With the following advantages that large air volume, high air pressure, low noise, low power consumption, light weight and in thesame installation position can realize the positive, reverse bidirectional

FW axial flow fan with impeller diameter is different, there are eleven types of specifications, i.e. fan diameter from 400mm to 1800mm. Each machine has a number of blades is 8-18, the blade have six kinds of installation angle, there are from 15-40 degree.

FW low noise axial flow fan with high temperature motor (class F insulation, protection grade IP54), casing adopts high-temperature baking process, can run at 120 degree Celsius below high temperature environment for a long time. The impeller is composed of low magnesium alloy is made, with explosion-proof performance. Therefore, in supporting the flameproof motor, can transportation of flammable gas.

Main Technical Parameter of Industrial Air Extractor

Model Number	Rotation (r/min)	Adjust Blade Deg.	Air Volume (m3/h)	Pressure (Pa)	Power (KW)		Model Number	Rotation (r/min)	Adjust Blade Deg.	Air Volume (m3/h)	Pressure (Pa)	Power (KW)
400	1450	15	4256	122.2	0.37		900	1450	15	25367	350	5.5
		20	5034	144	0.55				20	36465	380	7.5
		25	5250	156.6	0.55				25	45794	400	7.5
		30	5840	162.8	0.55				30	50033	420	11
		35	6290	168.8	0.55				35	55674	430	11
		40	6650	176	0.55				40	59845	460	15
450	1450	15	6363	162.8	0.75			960	15	16911	178	1.5
		20	7526	191.8	1.1				20	24136	197	2.2
		25	7849	208.6	1.1				25	30319	210	3
		30	8731	216.9	1.1				30	33125	230	3
		35	9404	224.9	1.1				35	36860	260	4
		40	9942	234.5	1.1				40	39622	288	5.5
500	1450	15	4213	155	0.55		1000	1450	15	38276	430	7.5
		20	5355	167	0.55				20	49662	460	7.5
		25	6745	175	0.55				25	52023	490	11
		30	8134	183	0.75				30	58159	530	15
		35	9325	202	1.1				35	60036	560	15
		40	10515	221	1.1				40	65230	590	18.5
	960	15	2789	68	0.37			960	15	25517	220	2.2
		20	3545	73.2	0.37				20	33108	243	3
		25	4465	76.6	0.37				25	41589	259	4
		30	5385	80.2	0.37				30	45439	284	5.5
		35	6174	88.6	0.37				35	50562	321	7.5
		40	6962	96.9	0.37				40	54351	356	7.5
560	1450	15	6928	161	0.55		1120	960	15	38700	303	5.5
		20	9316	179	0.75				20	49319	336	7.5
		25	11693	187	1.1				25	58428	358	11
		30	12777	207	1.1				30	63836	393	11
		35	14075	237	1.5				35	71034	444	15
		40	15482	256	1.5				40	77357	491	15
	960	15	4587	71	0.37			720	15	29025	170	2.2
		20	6165	78	0.37				20	36989	189	3
		25	7742	82	0.37				25	43821	201	4
		30	8458	92	0.37				30	47877	221	4
		35	9315	103	0.37				35	53276	250	5.5
		40	10250	114	0.55				40	58018	276	7.5
600	1450	15	8879	184	0.75		1250	960	15	49837	344	7.5
		20	11931	204	1.1				20	64664	380	11
		25	14984	212	1.5				25	81228	405	15
		30	16370	238	1.5				30	88748	444	18.5
		35	18035	257	2.2				35	98974	502	22
		40	20016	299	3				40	106154	556	22
	960	15	5878	80	0.37			720	15	37378	194	3
		20	7899	90	0.37				20	48498	214	4
		25	9919	93	0.37				25	60921	228	5.5
		30	10837	105	0.55				30	66561	250	7.5
		35	11937	117	0.75				35	74231	282	11
		40	13269	131	0.75				40	79616	313	11
630	1450	15	9856	205	1.1		1400	960	15	61709	410	11
		20	13265	227	1.1				20	78257	443	15
		25	16648	240	1.5				25	95307	484	18.5
		30	18189	265	2.2				30	112556	533	30
		35	20340	299	3				35	125345	584	30
		40	22044	330	3				40	139150	637	37
	960	15	6532	90	0.37			720	15	46281	231	5.5
		20	8776	100	0.37				20	58693	249	7.5
		25	11023	104	0.55				25	71480	272	11
		30	12472	116	0.75				30	84417	299	11
		35	13264	132	0.75				35	94009	329	15
		40	14590	145	1.1				40	104362	358	15
710	1450	15	14122	261	1.5		1600	960	15	97682	582	22
		20	18976	288	2.2				20	113618	633	30
		25	23830	300	3				25	131579	685	37
		30	26037	337	4				30	151784	720	45
		35	28686	360	5.5	35			172169	753	55
		40	31840	390	5.5	40			190383	782	75
	960	15	8338	114	0.55	720		15	73261	327	11
		20	12036	126	0.75			20	85214	356	15
		25	12769	132	0.75			25	98684	385	15
		30	14364	147	1.1			30	113838	405	18.5
		35	17709	166	1.1			35	129127	424	22
		40	21980	185	1.5			40	142784	440	30
800	1450	15	20202	331	3	1800	720	15	104311	348	18.5
		20	27145	365	4			20	121330	378	22
		25	34090	382	5.5			25	140509	410	30
		30	37247	410	5.5			30	156160	425	30
		35	41034	430	7.5			35	177737	446	37
		40	45548	440	11			40	201036	465	45
	960	15	13375	145	0.75
		20	17972	161	1.1
		25	22570	170	1.5
		30	24660	187	2.2
		35	27167	212	2.2
		40	30155	235	3

Low Noise Motor of Industrial Air Extractor

standard motors are totally enclosed, high efficiency

all motors are designed and rated for years of trouble free operation

each motor is individually tested for 100% quality control

Heavy duty casting pulley and hub

Pure copper line motor with long time using

axial-fan-motor

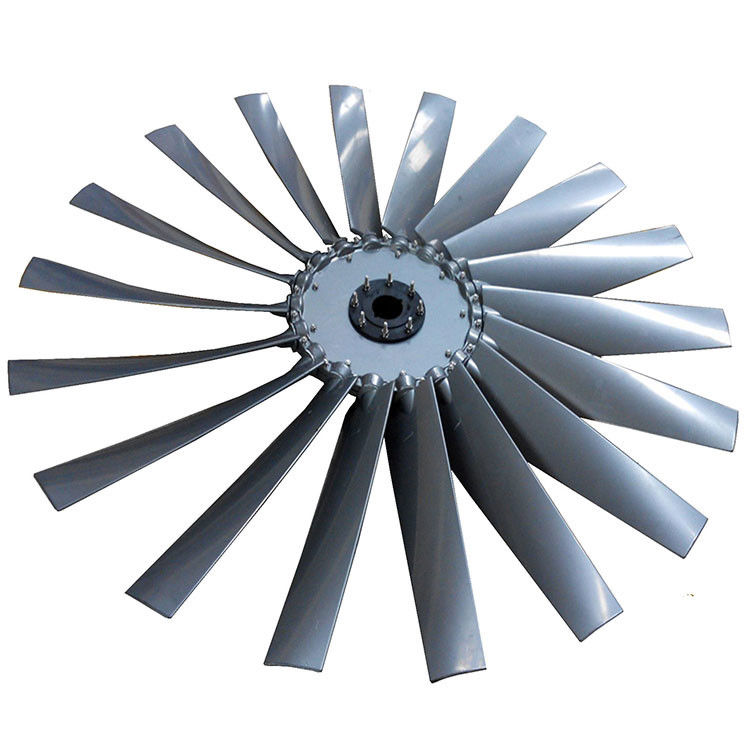

FW Propeller of Industrial Air Extractor

Aluminium fan blade with high quality and adjustable angle, the airflow then is very large and with low noise

impellers

FW Frame of Industrial Air Extractor

frame of the fan is with high quality steel or stainless steel

axial fan frame.jpg

MDF Box Package of Industrial Air Extractor

Application of Industrial Air Extractor

FW low noise axial fan series series are widely used to transport air in factories, workshops, warehouse and other relevant places for petroleum refining, and production of various alcohols painting, spray drying, rubber production, food processing and medicine production.
