Metal Fan & Blade

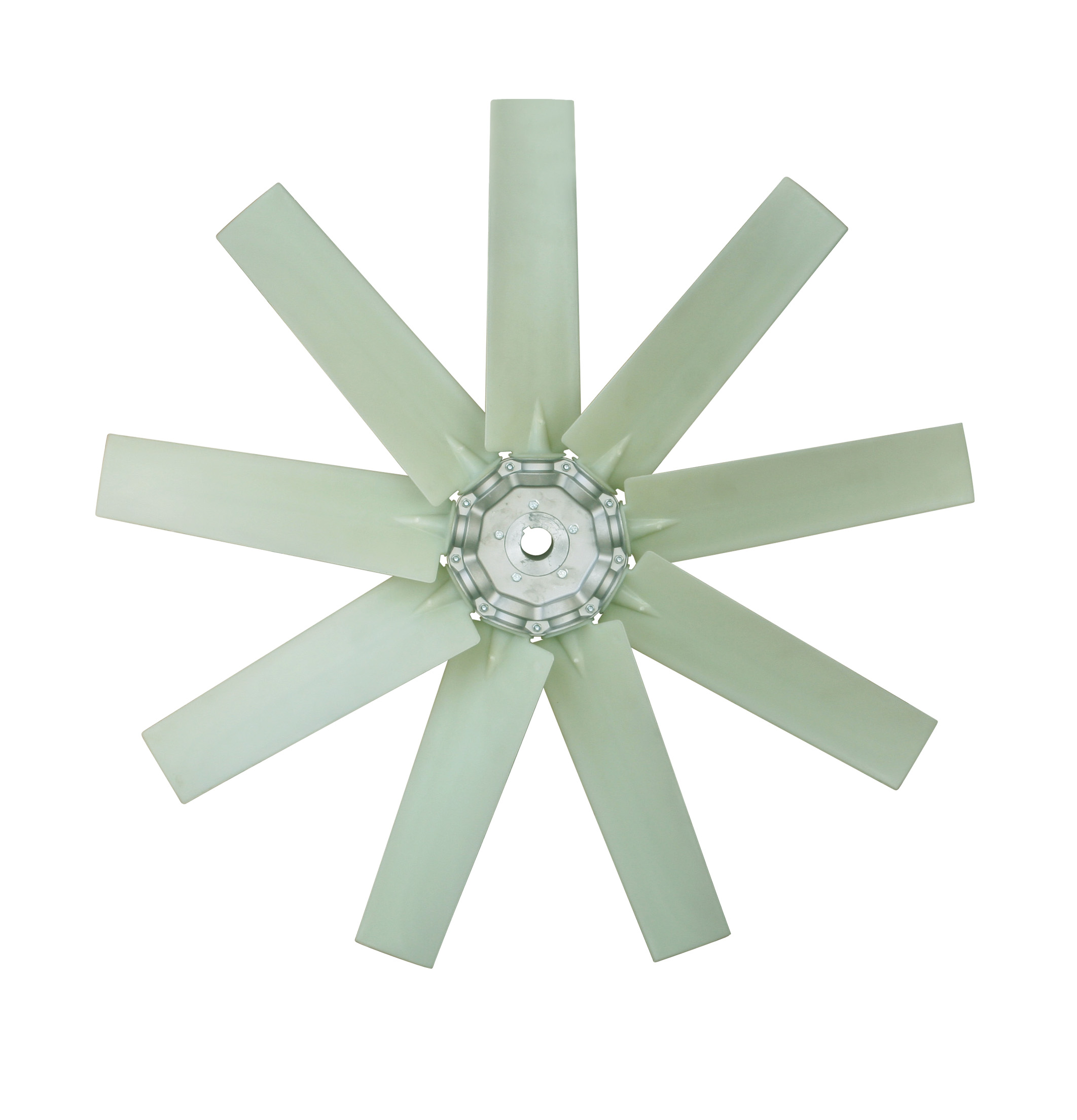

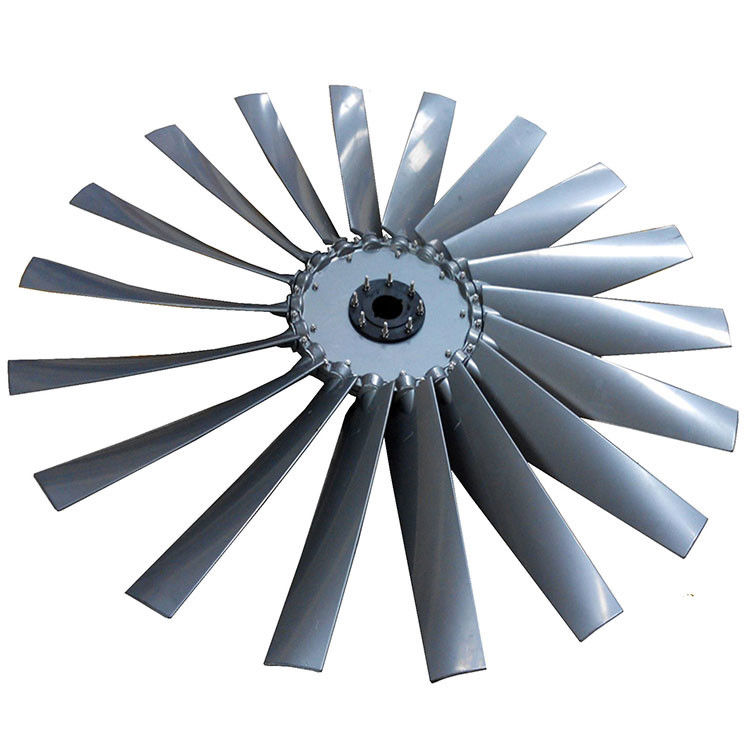

factory direct sales 10" to 71 inch diameter heavy duty high air volume industrial fan blades
Advantage of Industrial Fan Blade
1. adjustable blade installation angle
2. quantity of blades, 5pcs 6pcs 7pcs 8pcs 9pcs 10pcs 12pcs 14pcs 16pcs 18pcs for your selection
3. diameter of blades is from 250mm ~ 1800mm
Main Parameter of Metal Impeller
| Model No. | Baldes Diameter (mm) | Blades Quantity (pcs) | Axle Hole Diameter (mm) | Hub Material | Hub Diameter (mm) | Blade Installation Angle | Rotation Rate (r/min) |
| FW-H6C | 250-400 | 6 | 9,11,14 | aluminium alloy | 95 | unadjustable | 2850 |
| FW-CH6C | 300-500 | 6 | 14,19,24,28 | aluminium alloy | 150 | adjustable | 2850 |
| FW-CH6C | 560-630 | 6 | 14,19,24,28 | aluminium alloy | 150 | adjustable | 1450 |
| FW-CH8C | 300-500 | 8 | 14,19,24,28 | aluminium alloy | 150 | adjustable | 2850 |
| FW-CH8C | 560-630 | 8 | 14,19,24,28 | aluminium alloy | 150 | adjustable | 1450 |
| FW-CH10C | 300-500 | 10 | 14,19,24,28 | aluminium alloy | 160 | adjustable | 2850 |
| FW-CH10C | 560-630 | 10 | 14,19,24,28 | aluminium alloy | 160 | adjustable | 1450 |
| FW-BH9B | 400-500 | 9 | 19,24,28 | aluminium alloy | 200 | adjustable | 2850 |
| FW-BH9B | 560-800 | 9 | 19,24,28 | aluminium alloy | 200 | adjustable | 1450 |
| Model No. | Baldes Diameter (mm) | Blades Quantity (pcs) | Axle Hole Diameter (mm) | Hub Material | Hub Diameter (mm) | Blade Installation Angle | Rotation Rate (r/min) |
| FW-BH9B | 900-1000 | 9 | 19,24,28 | aluminium alloy | 200 | adjustable | 960 |
| FW-BH9B | 900-1000 | 9 | 38,42 | aluminium alloy | 200 | adjustable | 1450 |
| FW-BH10B | 400-500 | 10 | 19,24,28 | aluminium alloy | 200 | adjustable | 2850 |
| FW-BH10B | 560-800 | 10 | 19,24,28 | aluminium alloy | 200 | adjustable | 1450 |
| FW-BH10B | 900-1000 | 10 | 19,24,28 | aluminium alloy | 200 | adjustable | 960 |
| FW-AH8A | 500-560 | 8 | 24,28,38,42 | cast iron | 220 | adjustable | 2850 |
| FW-AH8A | 600-900 | 8 | 24,28,38,42 | cast iron | 220 | adjustable | 1450 |
| FW-AH9A | 500-560 |
9 |
24,28,38,42 | cast iron | 220 | adjustable | 2850 |
| FW-AH9A | 600-900 | 9 | 24,28,38,42 | cast iron | 220 | adjustable | 1450 |
| Model No. | Baldes Diameter (mm) | Blades Quantity (pcs) | Axle Hole Diameter (mm) | Hub Material | Hub Diameter (mm) | Blade Installation Angle | Rotation Rate (r/min) |
| FW-AH12A | 560-630 | 12 | 28,38,42,48 | cast iron | 320 | adjustable | 2850 |
| FW-AH12A | 710-1000 | 12 | 28,38,42,48 | cast iron | 320 | adjustable | 1450 |
| FW-AH12AA | 1000-1120 | 12 | 28,38,42 | aluminium alloy | 280 | adjustable | 960 |
| FW-DH14D | 1000-1120 | 14 | 38,42,48,55,60 | aluminium alloy | 440 | adjustable | 1450 |
| FW-DH14D | 1120-1400 | 14 | 38,42,48,55,60 | aluminium alloy | 440 | adjustable | 960 |
| FW-AH16AA | 1120-1250 | 16 | 42,48 | aluminium alloy | 400 | adjustable | 1450 |
| FW-AH16AA | 1120-1400 | 16 | 42,48 | aluminium alloy | 400 | adjustable | 1450 |
| FW-HJ18H | 1120-1400 | 18 | 42,48,55,60 | aluminium alloy | 500 | adjustable | 960 |
| FW-HJ18H | 1410-1700 | 18 | 42,48,55,60 | aluminium alloy | 500 | adjustable | 960 |
| FW-HJ18H | 1800 | 18 | 42,48,55,60 | aluminium alloy | 500 | adjustable | 720 |
| FW-AH24AA | 1120-1600 | 24 | 42,48,55 | aluminium alloy | 600 | adjustable | 960 |
